1. Industry Background & Market Demand
Modern
power distribution and industrial automation systems feature dense electronic components, high operational precision, and continuous running requirements, making low-voltage electrical circuits increasingly sensitive to transient overvoltage disturbances. Two dominant transient interference sources threaten industrial power systems worldwide: lightning-induced overvoltage generated by atmospheric lightning induction and switching overvoltage caused by frequent switching of contactors, breakers, and variable-frequency drive units.
These transient surge disturbances, even with low cumulative energy, can trigger micro-damage to precision instruments, frequency converters, and motor control units, leading to intermittent equipment failure, shortened service life, or unplanned production shutdowns. In multi-level power loop architectures widely adopted in European and American industrial facilities, commercial power distribution stations, and intelligent manufacturing workshops, hierarchical surge protection has become a mandatory standard for system stability compliance. Against this background, high-reliability YCM series surge protector has become a core auxiliary component for low-voltage power system safety renovation and new project construction, with sustained market demand in industrial power, building electricity, and new energy supporting scenarios.
2. Core Working Principle & Key Technology
The core function of the YCM series surge protector is to suppress transient overvoltage and discharge surge current in real time, forming a reliable voltage clamping barrier for rear-end electrical equipment. The product adopts passive voltage-limiting and current-releasing technology, with no standby power consumption and no impact on the normal operating state of the power loop.
When the power system operates at rated voltage, the internal core components remain in a high-impedance state, ensuring zero interference with the normal power supply. Once transient overvoltage caused by lightning induction or switch operation invades the loop, the internal impedance of the surge protector drops instantly to a low-resistance conduction state. It quickly guides high-intensity surge current to the ground loop and clamps the loop voltage within the safe withstand range of terminal equipment. After the transient disturbance disappears, the product automatically restores high-impedance standby mode, completing a full-cycle surge protection response. This fast response and self-resetting working mechanism ensures continuous and stable protection for multi-level power loops.
3. Product Structure, Performance, Materials & Manufacturing Process
3.1 Product Structural Design

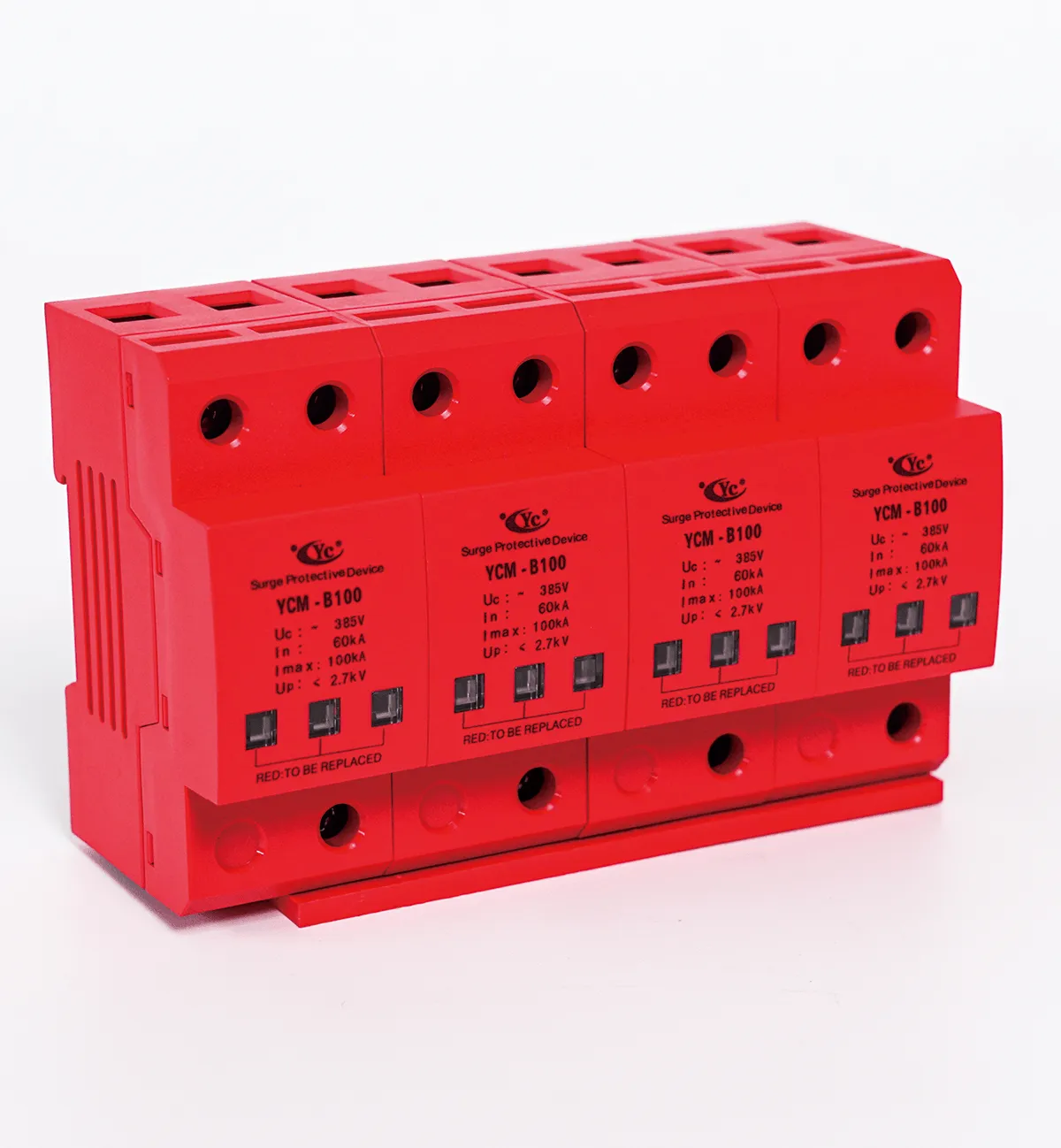

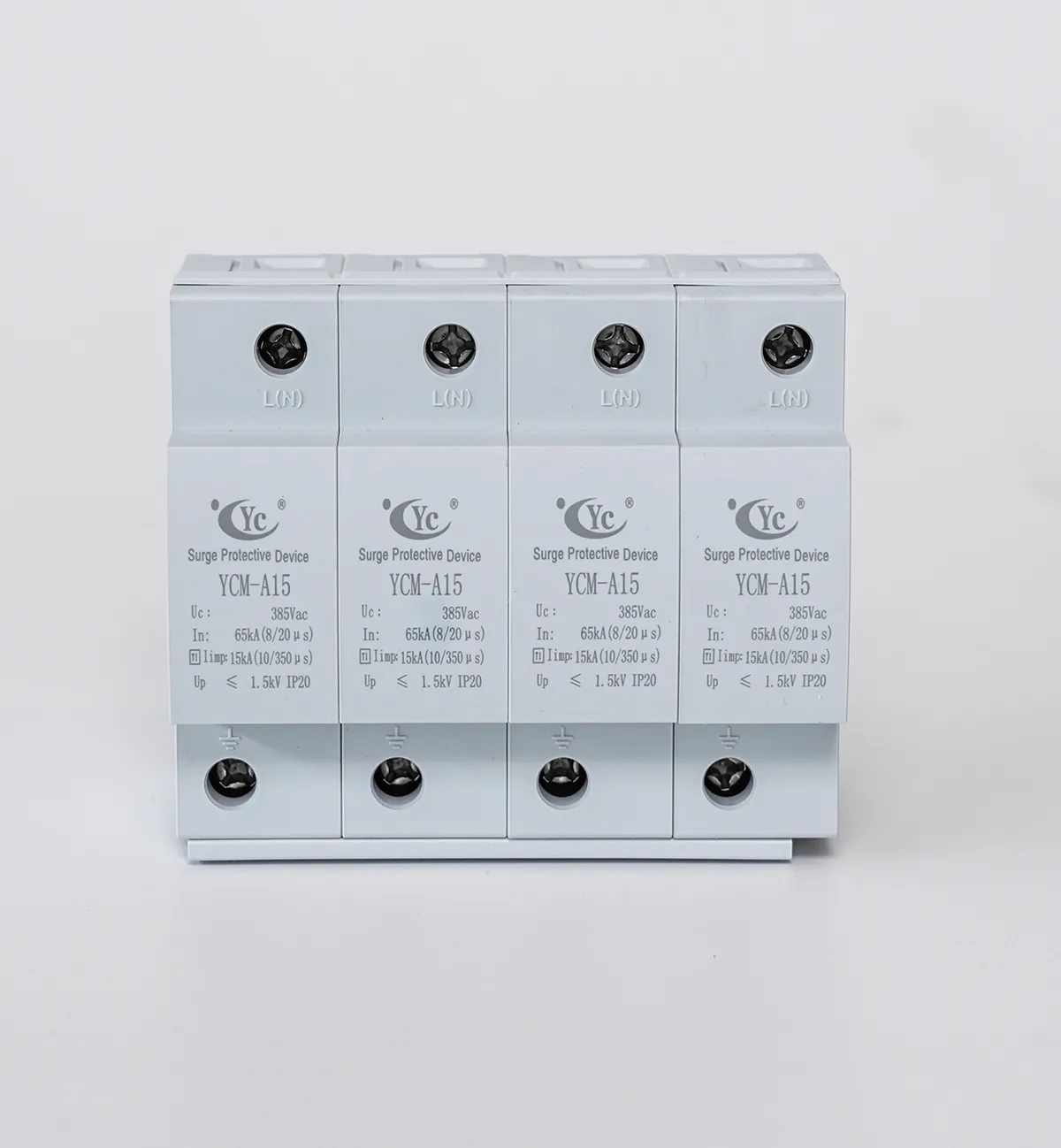

The YCM series surge protector adopts a modular integrated structure, consisting of a voltage-sensitive core module, thermal trigger protection unit, grounding conduction structure, and flame-retardant insulating shell. The overall structure is compact and compatible with standard rail mounting specifications, adapting to the compact layout requirements of European and American standard distribution cabinets. The independent thermal isolation structure effectively avoids component burnout and secondary circuit faults caused by long-term overload impact, realizing integrated overvoltage protection and fault self-protection.
3.2 Core Performance Parameters
The product is optimized for low-voltage power loop scenarios, with a fast response time controlled within nanosecond levels, which can capture and suppress transient surge signals that conventional protection devices cannot identify. It supports continuous operation in rated low-voltage power loops, with a large surge current discharge capacity, which can withstand repeated lightning induction and switching surge impacts. The stable voltage clamping performance ensures that the overvoltage of the protected loop is always controlled within the equipment safety threshold, effectively protecting switches, precision instruments, frequency converters, and drive motors in the rear circuit. In multi-stage power distribution systems, graded matching of YCM series products can realize full-link surge protection from the main power inlet to terminal equipment.
3.3 Core Materials
The voltage-sensitive core adopts high-purity metal oxide varistor materials with excellent voltage nonlinear characteristics and aging resistance, which can maintain stable electrical performance after thousands of surge impact cycles. The outer shell uses high-grade thermosetting flame-retardant insulating materials, which meet EU environmental protection and flame-retardant safety standards, with high temperature resistance and anti-aging properties. The conductive parts are made of high-conductivity copper alloy materials, reducing loop resistance and improving the efficiency of surge current discharge.
3.4 Manufacturing Process
The production process adopts automated patch welding and integrated pressing molding technology to ensure the consistency of internal component assembly and structural stability. All products undergo secondary high-temperature aging treatment and full-performance surge impact testing to eliminate initial defective products. The precision calibration process of voltage threshold ensures that the overvoltage trigger value of each product is within the standard tolerance range, meeting the unified protection requirements of large-scale engineering applications.
4. Key Factors Affecting Product Quality & Performance
The operational stability and service life of the YCM series surge protector are mainly affected by three core factors. First, the material uniformity of the varistor core: impure materials or uneven component density will lead to inconsistent voltage response thresholds, causing failure of overvoltage suppression or premature aging of components after repeated surges.
Second, the accuracy of thermal protection matching. Mismatched thermal trigger parameters will lead to two extreme problems: delayed protection causes component burnout, and premature trigger causes frequent product misoperation and affects normal power supply. Third, the structural sealing and heat dissipation design. Poor internal heat dissipation will cause heat accumulation during high-current discharge, reducing product reliability, while insufficient sealing performance will lead to dust and moisture ingress in industrial environments, damaging internal circuit structures.
In addition, standardized installation processes also affect the actual protection effect. Excessively long grounding wires or irregular wiring will increase loop impedance, reducing the surge current discharge efficiency of the surge protector.
5. Supply Chain & Supplier Selection Criteria
The core supply chain of the YCM series surge protector focuses on key raw materials and precision processing links, covering varistor core materials, flame-retardant shell materials, conductive copper pieces, and automated processing equipment. For European and American B2B engineering procurement scenarios, supplier selection follows strict quality and stability standards.
First, core component suppliers must have formal third-party electrical safety certification and long-term industrial supply qualifications, with stable raw material batch consistency to avoid performance fluctuations caused by material differences. Second, processing and manufacturing suppliers need to have automated production lines and complete quality testing systems, with traceable production processes and complete batch test reports.
Third, for cross-border supply scenarios, suppliers must have stable delivery capacity and standardized after-sales technical support capabilities to meet the batch delivery and engineering matching requirements of industrial power projects. Meanwhile, all raw materials and finished products must comply with EU RoHS and CE safety standards to adapt to regional market access specifications.
6. Industry Pain Points & Common Operational Problems
6.1 Typical Industry Pain Points
At present, the low-voltage surge protection industry generally faces three pain points in engineering applications. First, mismatched graded protection parameters in multi-level power loops lead to incomplete surge suppression, resulting in residual overvoltage damaging terminal precision equipment. Second, many low-end
surge protectors have poor aging resistance, with obvious performance attenuation after short-term operation, requiring frequent replacement and increasing operation and maintenance costs.
Third, traditional products have poor environmental adaptability, and are prone to performance failure in high-temperature, humid, or dusty industrial scenarios, unable to meet the long-term stable operation requirements of industrial automation systems.
6.2 Common Product Operation Problems (FAQ)
Q1: Why does the surge protector fail to protect equipment despite normal operation?
A1: Most cases are caused by unreasonable graded protection matching or non-standard wiring. Multi-level power loops need to be equipped with surge protectors with corresponding discharge capacity according to the voltage level and surge risk. Unmatched parameters or excessive grounding wire impedance will reduce the discharge efficiency, resulting in incomplete overvoltage suppression.
Q2: Will frequent switching operations cause performance attenuation of the YCM series surge protector?
A2: Qualified YCM series products have excellent anti-fatigue performance. Normal switching surge impacts will not cause performance attenuation. Only long-term overvoltage overload or extreme lightning surge impact beyond the product rating will lead to component aging. Regular routine detection can effectively avoid failure risks.
Q3: What scenarios are not suitable for the direct use of this series of surge protectors?
A3: It is not applicable to high-voltage power loops and extreme high-temperature and high-humidity unventilated scenarios without heat dissipation measures. For special industrial environments, customized enhanced models need to be selected.
Q4: How to judge whether the surge protector needs to be replaced?
A4: It can be judged through visual inspection and professional testing. If the shell is deformed, discolored or the thermal protection is triggered and locked, or the professional instrument detects that the voltage threshold and discharge capacity are lower than the standard value, the product needs to be replaced in time.
7. Application Scenarios & Industrial Cases
The YCM series surge protector is widely used in multi-level power loops of various low-voltage industrial and civil power systems, covering industrial manufacturing, commercial
building power distribution, intelligent equipment supporting, and new energy power distribution scenarios, providing targeted protection for various electrical equipment.
In intelligent manufacturing workshops in Europe and North America, the product is applied to the power loop of frequency converters and servo motor control systems. Frequent start-stop switching of automation equipment easily generates continuous switching surges. The YCM series surge protector can suppress transient voltage fluctuations in real time, avoid frequency converter parameter disorder and motor jitter caused by surge interference, and improve the stability of automated production lines.
In urban commercial building power distribution systems, it is used for hierarchical protection of main distribution cabinets and floor branch loops. It effectively resists lightning-induced overvoltage in thunderstorm weather, protects building power distribution switches, monitoring instruments, and weak current equipment, and reduces building electrical failure rates.
In small and medium-sized photovoltaic power distribution systems, the product is installed in the DC and AC power loops of the power distribution cabinet, suppressing surge disturbances generated by photovoltaic module voltage fluctuation and grid switching, protecting rear-end power distribution equipment and power generation monitoring instruments, and ensuring the continuous operation of new energy power distribution systems.
8. Current Industry Trends & Future Development Direction
With the continuous upgrading of global industrial automation and intelligent power distribution systems, low-voltage surge protection technology is developing towards high precision, long life, intelligent monitoring, and scenario customization. At present, European and American industrial markets have put forward higher requirements for the reliability and intelligence of surge protection equipment, and passive protection products with single functions are gradually unable to meet the refined operation needs of intelligent power systems.
The YCM series surge protector is iterating in three core directions. First, performance optimization: further improve the anti-aging ability and surge discharge endurance, adapt to long-term high-frequency switching surge scenarios, and extend product service life. Second, intelligent upgrading: integrate state monitoring modules to realize real-time feedback of product operating status, surge impact times, and component aging degree, facilitating remote operation and maintenance management of power systems.
Third, scenario customization: develop enhanced products for high-temperature, humid, corrosive and other special industrial environments, and form a full-series matching scheme for multi-level power loops to meet the differentiated protection needs of manufacturing, new energy, and building power distribution industries. In the future, high-reliability, intelligent and customized surge protectors will become the mainstream configuration of global low-voltage power system safety protection.
